Bixolon XD5-40 Series vs Zebra ZD421 — 4-inch Desktop Label Printers

Two 4-inch desktop thermal printers for retail back-of-house, healthcare labelling, light manufacturing, and transport & logistics, compared side-by-side. On the specs that matter day-to-day — print speed, language compatibility, media flexibility, and total cost of ownership — the Bixolon XD5-40 Series is the stronger commercial choice for most resellers and end users.

At a glance

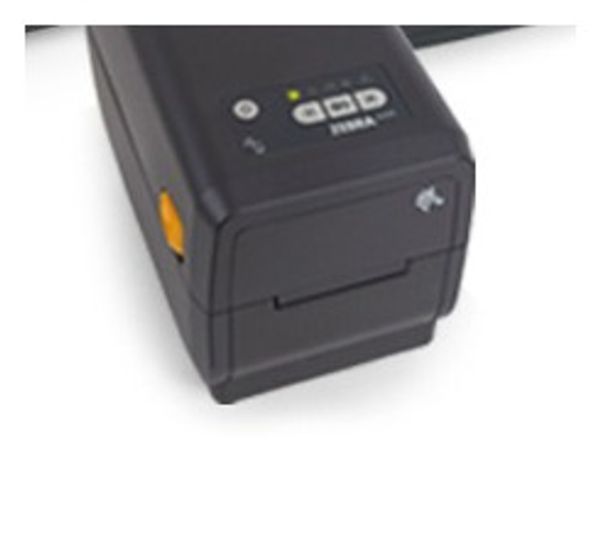

Both families cover direct thermal, thermal transfer, 203 dpi and 300 dpi configurations and target the same 4-inch desktop slot — retail back-of-house, healthcare labels, warehouse picking and light manufacturing. The XD5-40 is Bixolon's current desktop platform, designed to drop into existing Zebra, Datamax/Honeywell and EPL fleets without rewriting label formats. The ZD421 is Zebra's GK-replacement line, locked to the Zebra Link-OS / Zebra DNA stack.

On a head-to-head spec read, the XD5-40 wins where it counts for most deployments: 17% faster direct thermal at 203 dpi (7 ips vs 6 ips), multi-language emulation (ZPL II, EPL, DPL), a wider single-chassis media range (15–118 mm across all variants), dual-band 2.4/5 GHz Wi-Fi, and an open device-management story (SOTI Connect, plus Bixolon's own XPM/XCM tooling). The ZD421 has more baseline memory and a few niche variants — but the XD5-40's optional 256 MB / 512 MB upgrade closes the memory gap, and the niche variants only matter for niche deployments.

Print performance

Bixolon is faster in direct thermal — by a full ips

The XD5-40d tops out at 7 ips (178 mm/s) in direct thermal at 203 dpi versus 6 ips (152 mm/s) on the ZD421 — about 17% more throughput on the same shift. For high-volume 4×6 shipping labels, shelf-edge or pick labels, that gap shows up in shift-end label counts and in queue times at the bench.

In thermal transfer at 203 dpi the two converge at 6 ips; at 300 dpi the XD5-43t and ZD421 both drop to 4 ips. The DT advantage is the headline number — and DT is the dominant mode in retail and logistics.

Memory: a one-time upgrade closes the gap

The ZD421 ships with 256 MB SDRAM / 512 MB Flash as standard. The XD5-40 standard configuration is 64 MB SDRAM / 128 MB Flash, with optional 256 MB / 256 MB and 256 MB / 512 MB upgrades available — bringing it to parity with the ZD421 baseline. For most retail and back-of-house deployments the standard XD5-40 memory is more than enough; for large Unicode font sets or extensive stored formats, spec the 256 MB / 512 MB option at order and you've matched Zebra at a typically lower landed price.

Connectivity and integration

Language and Wi-Fi — XD5-40 fits more fleets

The XD5-40 emulates ZPL II, EPL and DPL (DPL optional) — drops into mixed Zebra / Eltron / Datamax / Honeywell estates with no label-format rewrites. The ZD421 is ZPL II / EPL only. Wireless: XD5-40 ships dual-band 2.4 / 5 GHz 802.11a/b/g/n, which covers 99% of retail and back-of-house Wi-Fi; the ZD421's optional Wi-Fi 6 only earns its premium on dense Wi-Fi 6E enterprise infrastructure.

Device management — open vs locked

The XD5-40 plugs into SOTI Connect (the MDM most resellers already use for Android handhelds), with Bixolon Profile Manager (XPM) and XCM included for firmware and settings. The ZD421 only fully unlocks inside Zebra DNA (Link-OS, PPME, PrintSecure) — powerful but Zebra-only, and typically paired with a paid Zebra OneCare contract.

Form factor and variants

The XD5-40 Series keeps the line-up simple — two chassis, one decision: XD5-40d for direct thermal only, or XD5-40t for thermal transfer with direct thermal as a fallback. Both chassis support the same 15–118 mm media width range, the same emulations, and the same wireless options. That makes specifying, stocking and supporting an XD5-40 fleet much easier than juggling four separate ZD421 sub-models.

Our recommendation — go Bixolon XD5-40

For the vast majority of 4-inch desktop label printer deployments — retail back-of-house, hospitality, light manufacturing, transport & logistics, even most healthcare labelling outside of strict IEC 60601-1 clinical environments — the Bixolon XD5-40 Series is the stronger commercial choice.

The five reasons that decide it for most customers:

1. 17% faster direct thermal at 203 dpi — 7 ips on the XD5-40d versus 6 ips on the ZD421 — measurable on shipping-label and shelf-edge runs.
2. Multi-language emulation (ZPL II, EPL, DPL) drops into mixed Zebra / Eltron / Datamax / Honeywell estates without rewriting label formats.
3. Single 15–118 mm media range across both XD5-40d and XD5-40t — simpler to spec, simpler to stock spare media.
4. Open device management via SOTI Connect, Bixolon Profile Manager (XPM), and XCM — no Zebra-only DNA lock-in, no OneCare upsell needed to operate the fleet.
5. Lower delivered cost on the typical 4-inch desktop SKU, with the optional 256 MB / 512 MB memory upgrade reaching parity with the ZD421 baseline if the label store is large.

We stock both families from our Rathnew warehouse for next-business-day delivery into Ireland and UK mainland, and can put a loan XD5-40 on your customer's bench for evaluation.
